Honda Civic Wheel Alignment Specifications,
Suspension Adjustability Information,
and Recommended Alignment Type.
1973-1979 Civic
The First Generation Civic has a MacPherson strut front suspension. Only Toe adjustablility is provided from the factory, however, aftermarket adjustment methods for Camber and Caster are likely available.

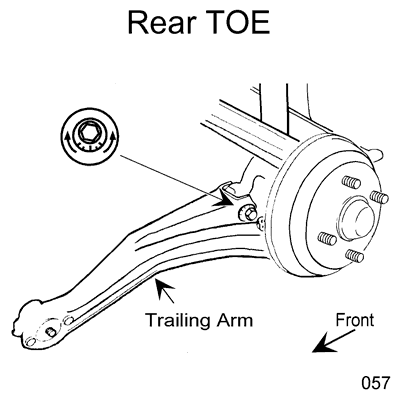

The rear independent strut suspension is OE adjustable for Toe only. (Illustration) The recommended alignment type is FOUR WHEEL
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
1980-1983 Civic (CVCC)
The Second Generation Civic has a MacPherson strut front suspension. Only Toe adjustablility is provided from the factory, however, aftermarket adjustment methods for Camber and Caster are likely available.
The rear strut suspension (except Wagon) is OE adjustable for Toe only. (Illustration) Wagon models have a solid beam axle with leaf springs,
with no OE adjustment provides. The recommended alignment type is FOUR WHEEL for the sedan, and THRUSLINE for the wagon.
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
1984-1987 Civic
The Third Generation Civic has a strut front suspension with torsion bars. Only front Toe adjustablility is provided from the factory, however, aftermarket adjustment methods for Camber and Caster are likely available.
The rear suspension on 2WD models is a torsion beam, and a solid drive axle on 4WD models. No OE adjustments are provided.
The recommended alignment type is THRUSTLINE
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
1988-1991 Civic
The Fourth Generation Civic has a wishbone strut front suspension. Only front Toe adjustablility is provided from the factory, however, aftermarket adjustment methods for Camber and Caster are likely available.
The rear independent strut suspension is OE adjustable for Toe only. The recommended alignment type is FOUR WHEEL
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
1992-1995 Civic
The Fifth Generation Civic has a wishbone strut front suspension. Only front Toe adjustablility is provided from the factory, however, aftermarket adjustment methods for Camber and Caster are likely available.
The rear independent strut suspension is OE adjustable for Toe only. The recommended alignment type is FOUR WHEEL
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
1996-2000 Civic
The Sixth Generation Civic has a wishbone strut front suspension. Only front Toe adjustablility is provided from the factory, however, aftermarket adjustment methods for Camber and Caster are likely available.
The rear independent strut suspension is OE adjustable for Toe only. The recommended alignment type is FOUR WHEEL
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
2001-2005 Civic
The Seventh Generation Civic has a MacPherson strut front suspension. Front Camber and Toe are adjustable from the factory. (Illustration)
The rear independent multi-link suspension is OE adjustable for Toe only. (Illustration) The recommended alignment type is FOUR WHEEL
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
2006-2010 Civic
The Eighth Generation Civic has a MacPherson strut front suspension. Only front Camber and Toe are adjustable from the factory. Camber is adjustable at the strut to knuckle attachment. (Illustration)
The rear independent multi-link suspension is OE adjustable for Toe only. (Illustration) The recommended alignment type is FOUR WHEEL
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
2011-2015 Civic
The Ninth Generation Civic has a MacPherson strut front suspension. Only front Camber and Toe are adjustable from the factory. Camber is adjustable at the strut to knuckle attachment. (Illustration)
The rear independent multi-link suspension is OE adjustable for Toe only. (Illustration) The recommended alignment type is FOUR WHEEL
Wheel alignment specs with adjustment illustrations are available for all Civic models HERE
2016 Civic
The Tenth Generation Civic coming soon
